ASK-2-E Sliding Door

About the Automatic Sliding Door operator systems:

  • Perfect smooth-running without audible noise, thanks to the encoded technology.
  • Micro-Computer Controlled.
  • Excellent reliability- passed more than 2 million cycle durability tests.
  • Optimum adaptability to individual requirements – e.g. department stores, shops and restaurants,
  • Hospitals, office buildings, retail outlets, stations and airports.
  • Option of remote control or function box for operating the system with functions like Normal, Hold
  • Open, Hold Close/Lock, Partial Open, Entry Only and Exit Only.
  • Unsurpassed Quality.
TYPE
ASK-2-E
DOOR WEIGHT
150kg X 1(DOOR)
130kg X 2(DOOR)
DDOOR WIDTH
500mm~2500mm
500mm~2500mm
INSTALL WAY
SURFACE INSTALL
SURFACE INSTALL
MOTOR
DC24V 75W WORM GEAR MOTOR
CONTROL
USER-FRIENDLY MICRO-CONTROL
POWER CONSUMPTION
75W
VOLTAGE
AC100V~240V
ENVIRONMENTAL TEMP.
-20℃~+50℃
VOLUME
60 DECIBEL (MAX)
STARTING SPEED
600mm/SEC. 550mm/SEC.
STARTING TIMES
0~20SEC. (REGULABLE)
TRANSMISSION IMPORTANT CONDITION
RACK BELT S8M
OPENING DOOR RANGE
FULL/HALF-OPEN (REGULABLE)
PFC POWER EFFICINCY
0.95(IN AC100V FULL LOAD)
TRACTION FORCE
3.5 kg
New Project - 2019-10-27T043619.914
HANGER WHEEL

Additional anti-jumps to ensure that door does not come off the track while….

New-Project-2019-10-27T025046 (1)

MICRO CONTROLLER

High range AC voltage input function. All AC voltage input range from AC

New Project - 2019-10-27T043342.838

WARM GEAR MOTOR

The motor module adopted metallic degree gear combined with brushless…

Operation Instructions

Please wait while flipbook is loading. For more related info, FAQs and issues please refer to dFlip 3D Flipbook Wordpress Help documentation.

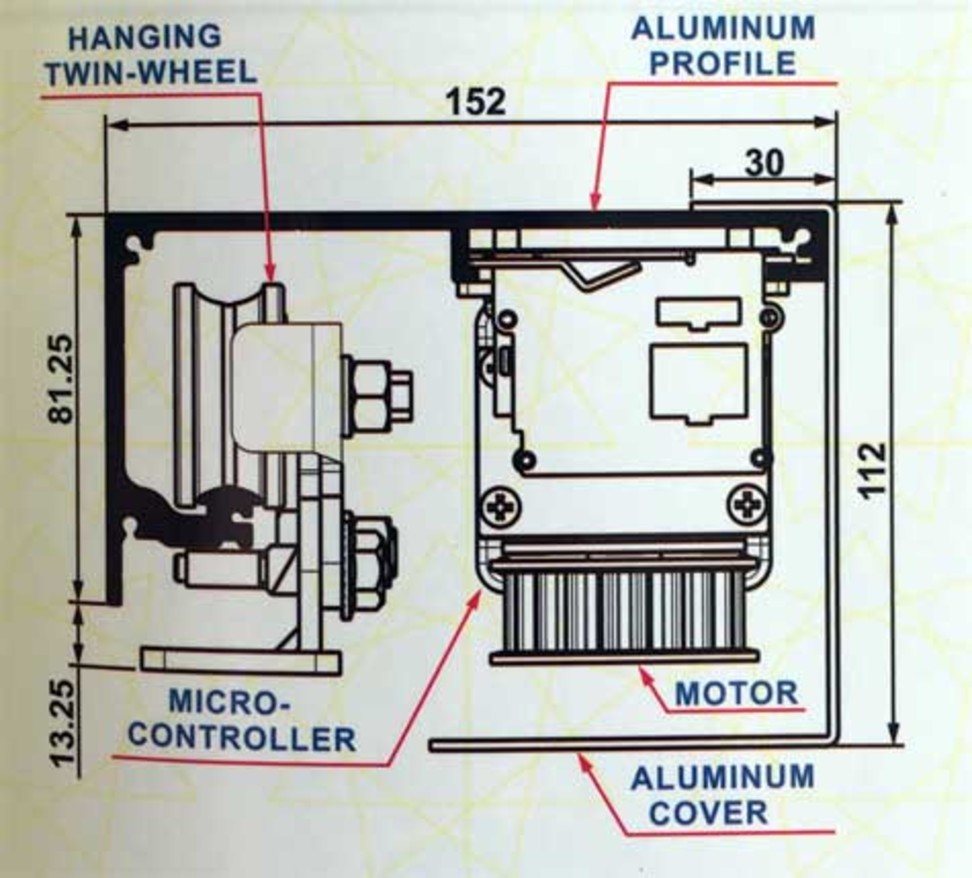

Automatic Sliding Door operator systems

Worm Gear Motor

Large deceleration more space and bigger torque

Gear Reducer

Twin-Wheels Hanger

Stable and durable “Seesaw Wheel” hangers quiet and smooth

Micro-Controller

&

Combined Terminal Block

Intelligence operator provides 5 functions of door’s motion

Features

  • “PFC” Device (Power Factor Correction)
  • Catch-return Safety System : During the door motion if there is a person or object block the travel line, the door will return.
  • Safety Certificate : CE
  • Factory Certificate : URS ISO 9001
  • No restrictions for  used places, the best choice for city architecture.With top security device, no misgivings about danger.
  • Excellent Quality & High Performance.

EN-16005  The latest regulation for the safety function of automatic door in Europe.
